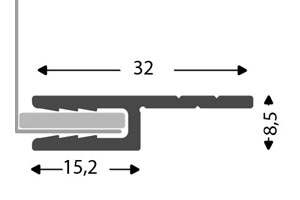

System: T-Flex tensioning system Article No. 131063

T-Flex 9 Retro

A special T-Flex adapter profile which can be attached onto any supporting backstructure to tension printed textile. Can be applied in, for example, shop windows, doors-, window frames, etc.

Specification

Meduim: Printed Fabric

Usage: Indoor

Colour: 6100 mm, EN AW 6060 T6 mill-finished & anodized

Parts: Silicone cedar, PVC cedar, selfadhesive cedar, eco ceder.

Illumination: non

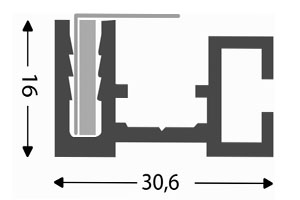

System: T-Flex tensioning system Article No. 139130 anod

T-Flex 17 REINFORCEMENT

The ultimate Textile mini frame from Comhan to stretch SEG fabrics. The frame is provided with a reinforcement detail in which a stiffener can be attached so larger frames are possible as well.

Specification

Meduim: Printed Fabric

Usage: Indoor

Colour: Anodized 139130

Parts: Sew-in rubber, selfadhesive rubber, ecokeder , connector, support profile 131018 connectors 131022, 45 degree connector 131023

Illumination: non

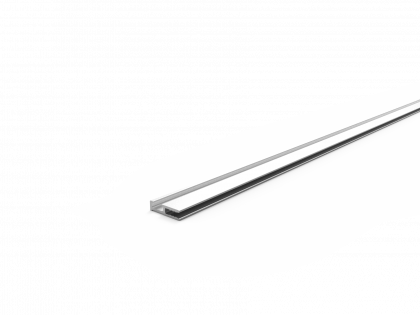

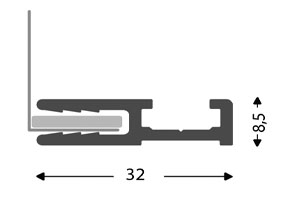

System: T-Flex tensioning system Article No. 131002 Mill, 131004 Anod, 131003 Black RAL 9003

T-Flex 17 Straight

A specially developed T-flex mini frame by Comhan to frame up textile. Applied eg. door frames, window frames, screen doors, room dividers, etc.

Specification

Meduim: Printed Fabric

Usage: Indoor

Colour: 131002 Mill, 131004 Anod, 131003 Black RAL 9003

Parts: 137154 corner connector ,137152 straight connector , 131020 keder

Illumination: non

System: T-Flex tensioning system Article No. 131005 Mill, 131007 Anod, 131001 Ral 9003 Black

T-Flex 17

A specially developed T-Flex Mini frame by Comhan Holland to frame up textile. Applied e.g. on wall, or other objects.

Specification

Meduim: Printed Fabric

Usage: Indoor

Colour: 131005 Mill, 131007 Anod, 131001 Ral 9003 Black

Parts: 137154 corner connector, 137152 straight connector, 131079 ajustable wall mount breacket

Illumination: non

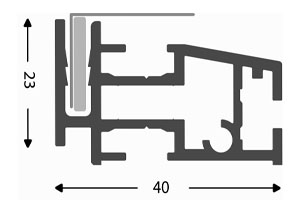

System: T-Flex tensioning system Article No. 131010 Mill, 131012 Anod, 131013 Black ral 9003

T-flex 23

This frame is for indoor applications available in single-and double-sided versions. The series comprises 15 models and is very suitable for situations where the canvas should be regularly changed.

Specification

Meduim: Printed Fabric

Usage: Indoor

Colour: 131010 Mill, 131012 Anod, 131013 Black ral 9003

Parts: 137154 corner connectors (2) , Straight connectors(2) 131018 Reinforcement profile, 131022 connector 131023 45 degree connector , 131111 mounting plate

Illumination: non
