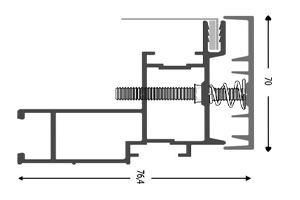

The innovative tensioning system consists of just two profiles: the tension frame and the cover profile. The cover profile 'locks up' the printed textile cloth and can be opened/closed by loosening/tightening spring-loaded screws. This allows for quick and easy changes of the fabric. The frame can be mounted to a wall with accompanying stainless steel brackets (center-to-center distance 1250mm).

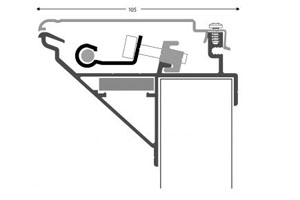

A super light and strong aluminium tensioning system for billboards indoors and out, without backlight. To be used as XXL and frameless tensioning system on the walls of buildings, with extra strong tensioning system. BillBoardFlex® is increasingly being used as a tensioning system for facades and as large format tensioning for ceilings. Application High streets, airports, shows, events, concert halls, theatres, and buildings, both indoors and out. Sizes Depth: only 105 mm!Max. LxW in mtr. Upon request and dependent upon location and expertise of assemblers Assembly and parts The system is easy to assemble and consists of only a limited number of components. Standard tubing (aluminium or steel) with a basic size of 40x40 mm fits onto the rear side of the tensioning frame profile. Tensioning the BillBoardFlex after assembly is made easy by good accessibility of the tensioning part. Comhan tips Detailed assembly instructions are contained in PDF file below. All profiles are delivered cut or welded to size. Can be delivered pre-assembled subject to adequate batch size (without banner, lighting armatures, lamps etc.).

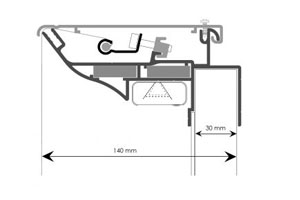

Comhan DainoFlex is one of the innovative fabric tensioning systems in our range. This single-sided tensioning system (140 mm deep) allows you to create LED-lit poster boxes in conjunction with PVC or textile quickly and easily. The new keder tensioning profile means that the fabric can now be fitted and swapped even more quickly. Other features: For indoor and outdoor use Limited number of profiles and components Illumination with SideLED or BackLED Available from stock in lengths of 6100 mm and cut to size on request Back panel: 2.0 mm aluminium composite panel (White/White, White/Silver or LGP which have special light conducting properties) The required profiles and accessories are available directly from stock or alternatively can be suppplied as a cut-to-size and easy-to-assemble DIY kit. Comhan supplies 7 different banner systems for varying solutions. New: Cross stiffener for BillBoardFlex® & DainoFlex®

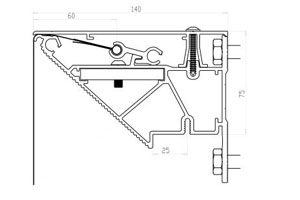

robust aluminium tensioning-system to make XXL (PVC / banner) tension frames which can be mounted directly on to a wall (LED lit or unlit). The WR-Flex® system can be used to communicate (advertising) messages via large façades, or adorn or provide existing buildings with a “face-lift”. Simple mounting by pre-assembled, retractable corner fittings enabling straight cut profiles to be used. Thanks to the intelligent 'slide-in detail', the canvas (on the upper side featuring keder) can be slid smoothly into the tension frame. As such the wording on a message is always straight and large canvasses can be easily and quickly alternated. In addition to the mill finish version, WR Flex® is also available in a LED White Matt lacquer (RAL 9003) for even and bright illumination. In combination with the use of special light conducting, lightweight rear wall panels (LGP), optimal illumination can be achieved with fewer LED modules.

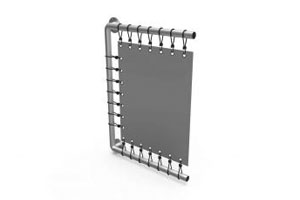

A highly extensive programme of cast aluminium pieces for endless applications in different branches: construction, industry and visual communication. Application Advertising and signing: banner tensioning systems for billboards, signposts, name plates, bicycle stands, clothing racks, stand construction, shop interiors, etc. Industry: as safety partitions around machines, for racks in warehouses, loading platforms, steps, etc. Recreation: for constructions in sport halls, stadiums, theme parks, playgrounds, swimming pools, surfing areas, campsites etc. Decorative: photographs on canvas, WOWs and tensioned ceiling prints. Parts Connecta® consists of cast aluminium pieces and a special tube profile. The programme contains at least 29 aluminium components, which are universally applicable and easy to assemble with the accompanying aluminium standard profile. Assembly The Connecta® parts are easily assembled due to the use of: glues, screws or pop rivets. The components and the tube profile are available from stock, mill-finished and, at an extra charge, coated in any RAL colour (powder coating). The Connecta® tube is of course available cut to size with all accompanying parts such as elastic bands and flexclamps. Connecta® parts cannot be anodised (because of casting).
